Audi B8/8.5 Rear Toe Arms increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength. Changes to ride height and camber will affect toe settings causing increased tire wear and adverse handling. SPL toe arms feature gun drilled 2024 Aluminum links that are Black Anodized to prevent corrosion and provide a durable finish. We utilize 360 degree rotating 6061-T6 Aluminum clamps that allow for quick, precise adjustment with Blue Anodized Titanium Socket Head Cap Screws, which shaves even more unsprung weight without compromising strength.
The stock eccentric bolts that allow for small toe adjustments can slip under high cornering loads, causing changes to the rear alignment. Our SPL Parts Eccentric Lockout (EL) kit eliminate the stock eccentric bolts to keep your rear alignment where you set it. Our lockout plates are CNC machined from 6061-T6 Billet Aluminum and supplied with Zinc plated grade 10.9 hardware for absolutely zero-slip.
3 piece Rod Ends feature a Teflon liner to provide quiet operation, low friction, smooth articulation, and eliminates bushing deflection under load.
Sold as a pair and made in the USA.

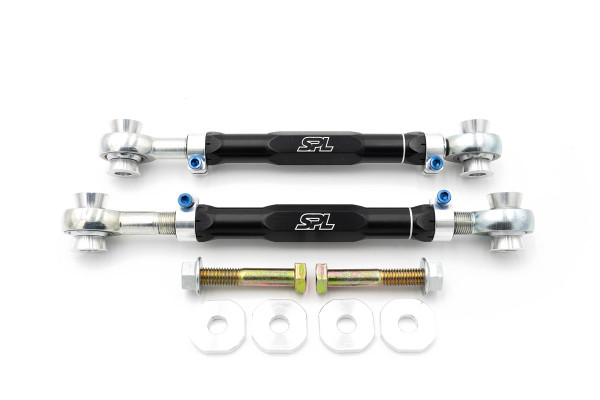

SPL Parts Rear Toe Links for Audi A4/A5/S4/S5 Features:
- Black Anodized and Gun drilled 2024 Aluminum Links
- 6061-T6 Aluminum Clamps and Eccentric Lockout Washers
- Blue Anodized Titanium Socket Head Cap Screws
- Tapered 6061-T6 Aluminum Knuckle and Chassis Mount Spacers
- Teflon lined Rod Ends
- Grade 10.9 Hex Cap Bolts with Lock Nuts
Applications:
2009-2016 Audi B8 & B8.5 A4/A5/S4/S5
Installation Instructions:
